Use This House Sewer Line Diagram to Find & Prevent Problems

In an ideal world, you’ll almost never have to see or interact with your sewer line. Other than calling us in for maintenance every couple of years, it should just operate quietly in the background for you. That doesn’t mean you shouldn’t have at least a general understanding of where it is or how it works!

This simple diagram will tell you where your main sewer line, lateral lines, and cleanouts are typically located so you can watch for common signs of trouble and act quickly if you find them. We’ll also show you where common local issues like root intrusion, corrosion, and broken pipes typically develop first.

Struggling with a suspected sewer line issue right now? Don’t wait for it to turn into a sewage backup or flood! Call us right away at (650) 294-8596 and we’ll get someone out to you ASAP.

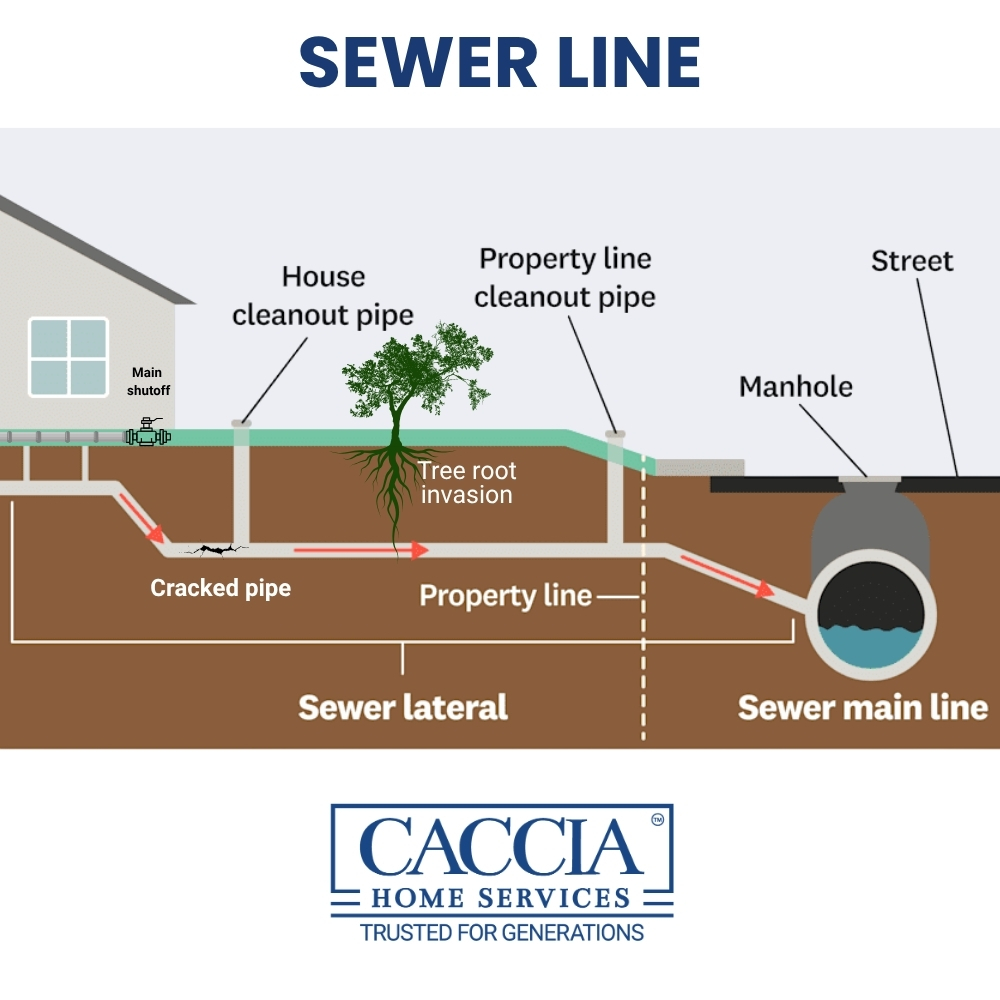

Typical House Sewer Line

Important Definitions

• Upper lateral: The privately owned pipe that carries wastewater from the house to the city line.
• Lower lateral: The pipe that runs from the property line to the city connection point.
• Main sewer line: The large, city-owned pipe that collects wastewater from homes.
• Manhole: A city access point used to inspect and service the sewer system.
• House cleanout: A small access pipe that lets a plumber clear clogs close to the house.
• Property cleanout: Another access pipe near the sidewalk for clearing deeper clogs.
• Main shutoff: The valve that turns the fresh water coming into your house on or off.

How to Use This Diagram

DIY sewer line fixes can be dangerous, legally risky, and costly, so we don’t ever recommend trying to troubleshoot a sewer line on your own. Even just being around sewage can be hazardous to your health, because wastewater almost always contains harmful microorganisms like E. coli.

What you can do is use it to get a general sense for where your lines are so that you can:

• Identify important landmarks on your property, like cleanout points.
• Identify where you’re most likely to experience the side effects of a leak or broken pipe.
• Determine if the trees on your property are likely to interfere with your lateral lines.
• Map out maintenance needs based on the type of system you have.
• Figure out what you’re responsible for and where your responsibility stops.

The exact layout of lines on each property here in the Bay Area can be a little bit different depending on factors like total square footage, neighborhood, and elevation. But in general, you can expect your lines to run from your household plumbing and drains to the street.

ProTip: If you have a septic tank, you have a different setup. Your lines will typically run from your home to the septic tank or drain field instead.

What You’re Responsible For (And What You’re Aren’t)

Here in the Bay Area, you’re typically responsible for the entire sewer lateral that runs from the house all the way to the connection point at the public main. This includes both the upper lateral on your property and the lower lateral that continues under the sidewalk or street.

The public works department is responsible for the main sewer line itself, so if the issue starts inside the main, the city or county will handle the repair.

When to Call a Professional

The fact that most of your drainage system is underground can make it very difficult to figure out how to decide if it’s time to reach out to a pro on your own. The diagnostic process actually begins over the phone when you call, so we encourage you to send us a message with questions anytime.

Reach out right away if you notice:

• Multiple drains are backing up. This is a sign that something more serious is going on further down the line, like a clog or tree root intrusion.
• Gurgling sounds. Bubbling or gurgling from a drain, toilet, or tub usually means air is trapped behind a clog somewhere in the line. It’s a warning sign you should never ignore.
• Sewer smells indoors or outside. A foul odor near drains, cleanouts, or the yard can signal a broken, leaking, and/or sagging pipe. This is urgent and can turn into an emergency fast.
• Soft spots or soggy areas in the yard. If the ground feels wet when it hasn’t rained, you could have wastewater seeping out of a damaged pipe somewhere on your upper or lower lateral.
• Recurring clogs. A single, short-lived clog may really be just a minor case of temporarily overloading the pipe. If they happen over and over, that’s a red flag for bigger problems.

The best way to diagnose what’s causing issues like these is to schedule a camera inspection. We’ll come out and run a fancy camera on a long cable down one of the cleanouts, which lets us check it out visually from above the ground on a little TV screen. It isn’t very exciting to watch, but it works!

How Much Do Sewer Line Repairs Actually Cost?

This is a tricky question to answer without knowing a bit about your property and where you live in the Bay Area. The easiest way to get a tailored quote is to have one of our pros come out and take a look.

We do want to be upfront that major sewer line repairs and replacements can get expensive when they’re truly needed. The good news is that most homeowners don’t reach that point for a long time, as long as they schedule a maintenance appointment every couple of years.

Estimates usually factor in:

• The type of problem
• Whether the location is easy to access
• How complex the problem is to diagnose and fix
• The length of your system and the depth underground
• The type of pipe material you have (older clay systems are harder to work with)
• If we can get the job done as part of a trenchless repair or need to excavate
• Whether any permits are needed in order to get the job done
• The time of year (Thanksgiving is one of the busiest times of year for plumbers!)

To get an up-to-date, accurate estimate of any potential costs, book an appointment!
